TCCOOL Refrigeration Co., Limited

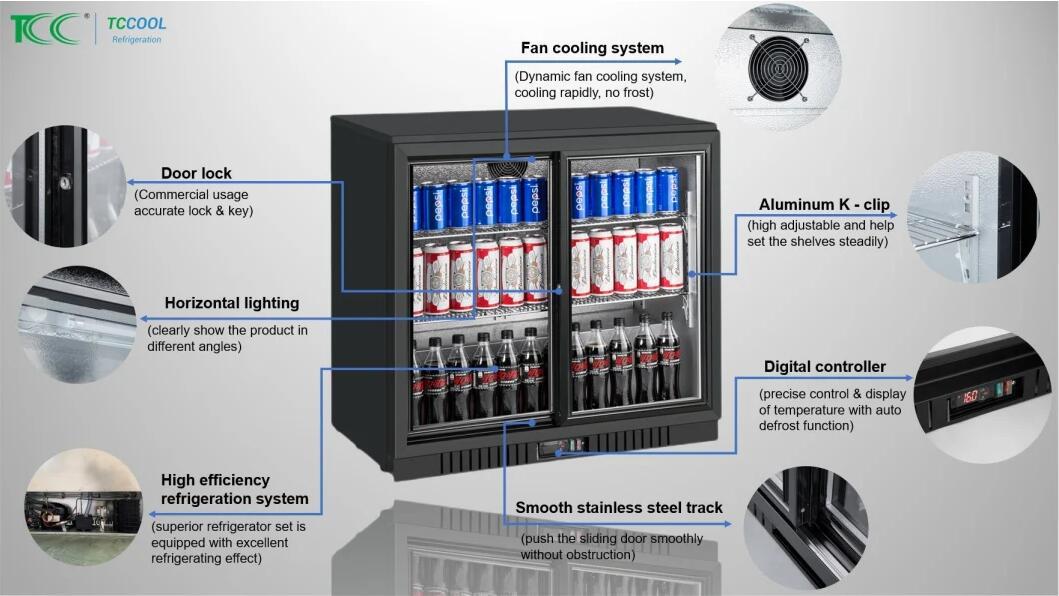

TCCOOL's Double Door Back Bar Chillers are the perfect freestanding refrigerated display solution for those seeking versatility and reliability. High-impact LED lighting highlights products through this unit's hinged or sliding double layer tempered glass doors while powerful fan-forced refrigeration enables rapid cooling.
Features:
* CFC Free refrigerant R134a / R600a Dynamic cooling system, strong and even cooling circulation
* Low noise, low energy consumption
* ST climate range suitable for indoor & outdoor situation
* Adjustable heavy duty shelves
* With Lock & Key
* Digital controller with clear temperature display
* Self-closing tempered glass door
* Self-evaporated Water Tray
* Front to back exhausted air
* Horizontal lighting through the cooler
Options:
* 110~120V/60Hz, 220~240V/60Hz, 220V/50Hz for option
* Varies of digital controller brand for options (Dixell, Carel, Elitech and etc.)
* Varies of door handles for options
* Transparent logo sticker on glass door
* Engrave logo on glass door (DIY)
* #304 stainless steel for external body or internal body
* Evaporator fan switch control on/off while door open/closed
| MODEL | BBC-138 | BBC-208 | BBC-208S | BBC-330 | BBC-330S |
| Volume ( L / Cu.Ft.) | 138L / 4.87Cu.Ft. | 208L / 7.35Cu.Ft. | 208L / 7.35Cu.Ft. | 330L / 11.65Cu.Ft. | 330L / 11.65Cu.Ft. |
| External
Dimension ( mm / inch) |
600x530x895 23.6''x20.9''x35.2'' | 900x530x895 35.4''x20.9''x35.2'' | 900x520x895 35.4''x20.5''x35.2'' | 1350x530x895 53.1''x20.9''x35.2'' | 1350x520x895 53.1''x20.5''x35.2'' |
| Packing
Dimension ( mm / inch) |
645x570x950 25.4''x22.4''x37.4'' |
950x570x980 37.4''x22.4''x38.6'' |
950x570x980 37.4''x22.4''x38.6'' |
1400x570x980 55.1''x22.4''x38.6'' |
1400x570x980 55.1''x22.4''x38.6'' |
| Temperature
Range ( ℃ / ℉ ) |
0~7 ℃ / 32~44.6 ℉ | ||||
| Cooling System | Fan Cooling (Dynamic Cooling) | ||||
| Control System | Digital Controller | ||||
| Evaporator type | Fin Type Evaporator | ||||
| Condenser type | Wire Type Condensor | ||||
| Glass Door Type | Two layer glass with outer tempered | ||||
| External Finishing | Prepainted Color Coated Sheet | ||||
| Inner Finishing | Pressed Aluminium Sheet | ||||
| Defrost System | Auto Defrost | ||||
| Internal Lighting | Horizontal LED light | ||||
| Exhausting Direction | Exhausting to the backside | ||||
| Lock & Key | YES | ||||
| Shelf Quantity | 2 shelves | 4 shelves | 4 shelves | 6 shelves | 6 shelves |
| Net Weight ( kg / lbs) | 43 kg / 94.8 lbs | 59 kg / 130.1 lbs | 59 kg / 130.1 lbs | 80 kg / 176.4 lbs | 80 kg / 176.4 lbs |
| Gross Weight ( kg / lbs ) | 47 kg / 103.6 lbs | 63 kg / 138.9 lbs | 63 kg / 138.9 lbs | 84 kg / 185.2 lbs | 84 kg / 185.2 lbs |
| Loading (20'GP/40'GP/40'HQ) | 72 / 144 / 144 | 48 / 96 / 96 | 48 / 96 / 96 | 32 / 66 / 66 | 32 / 66 / 66 |
