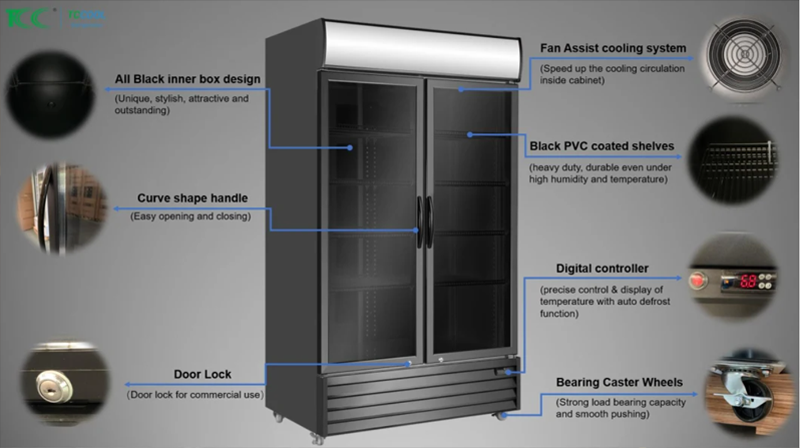

TCCOOL's Black Series Dynamic Fan Cooling Full Glass Upright Display Chiller is designed with complete glass door maximize the display area from up to down. Black Inner body mostly attracts eyeball with LED lighting and appears to be more outstanding in the market.
Features:
* CFC Free refrigerant R134a / R600a / R290a
* Dynamic cooling system, strong and even cooling circulation
* T climate range suitable for indoor & outdoor situation
* Adjustable heavy duty shelves
* With Lock & Key
* With Digital Controller
* Self-closing tempered glass door
* Self-evaporated Water Tray
* Back to front exhausted air to reduce glass door's condensation
Options:
* 110~120V/60Hz, 220~240V/60Hz, 220V/50Hz for option
* Graphics logo stickers on both sides, lighting canopy and shelf barriers
* Low-E glass door for better cooling performance
* Transparent logo sticker on glass door
* Engrave logo on glass door (DIY)
* Extra shelves
* Stopper at the backside to avoid getting too closed to the wall
* Stopper near the front wheels to make sure the machine balance
* Front to back exhausted air for extremely hot area
| MODEL | DC-800 | DC-1000 | DC-1150 | DC-1200 | DC-1400 |
| Volume (L/Cu.Ft.) |
800L 28.25Cu.Ft. |
1000L 35.31Cu.Ft. |
1150L 40.61Cu.Ft. |
1200L 42.38Cu.Ft. |
1400L 49.44Cu.Ft. |
| External Dimension (mm/inch) |
1000x720x2023 39.4x28.3x79.6 |
1130x720x2023 44.5x28.3x79.6 |
1130x820x2023 44.5x32.3x79.6 |
1330x720x2023 52.4x28.3x79.6 |
1330x820x2023 52.4x32.3x79.6 |
| Packing Dimension (mm/inch) |
1050x770x2100 41.3x30.3x82.7 |
1185x770x2100 46.7x30.3x82.7 |
1185x870x2100 46.7x34.3x82.7 |
1380x770x2100 54.3x30.3x82.7 |
1380x870x2100 54.3x34.3x82.7 |
| Temperature
Range (℃/F) |
0~10℃/32~50℉ | ||||
| Cooling System | Fan Cooling(Dynamic Cooling) | ||||
| Control System | Digital Controller | ||||
| Evaporator type | Fin Type Evaporator | ||||
| Condenser type | Wire Type Condensor | ||||
| Glass Door Type | Two layer glass with outer tempered | ||||
| External Finishing | Prepainted Color Coated Sheet | ||||
| Inner Finishing | Prepainted Galvanized Steel | ||||
| Light Box | Horizontal LED light x 1 | ||||
| Internal Lighting | Vertical LED light x 2 | ||||
| Exhausting Direction | Exhausting air blowing to the glass door | ||||
| Wheels/Feet | 4 wheels with 2 front brakes | ||||
| Shelf Quantity | 8 shelves | ||||
| Net
Weight (kg/lbs) |
132kg 291 lbs |
139kg 306.4 lbs |
155kg 341.7 lbs |
160kg 352.7 lbs |
173kg 381.4 lbs |
| Gross
Weight (kg/lbs) |
149 kg 328.5 lbs |
157kg 346.1 lbs |
174kg 383.6 lbs |
180kg 396.8 lbs |
195kg 429.9 lbs |
| Loading (20'GP/40'GP/40'HQ) | 16/34/34 | 15/30/30 | 11/23/23 | 12/25/25 | 10/22/22 |
